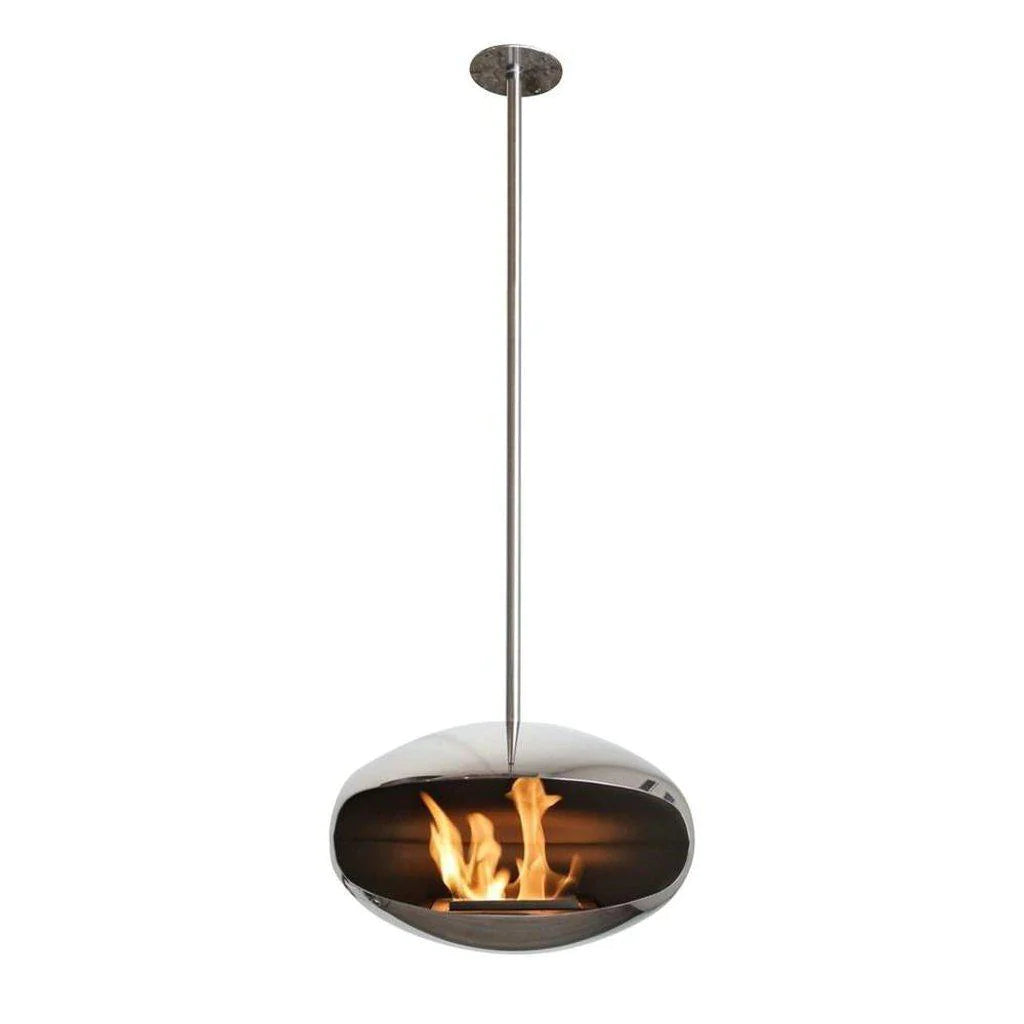

Cocoon Fires Aeris S/S With Angled S/S Hanging System

This includes Mounting bracket at 2.5cm (1” in) high, Hanging Pole at 142cm (56” in) high and Cocoon at 38cm (15” in) high.



The units can rotate 360 degrees.

Combustion Chamber Capacity:
• 1.5 liters (Burns Up to 5 hours)

DIMENSIONS
Main body:
• Diameter 60cm (23.7” in)
• Height 38cm (15” in)

Adjustable Hanging System:
• Mounting Plate:
• Diameter 19cm (7.5”in)
• Height 2.5cm (1”in)

Adjustable Hanging Pole:
• 6 height positions
• Full extension 142cm (56” in),
• Height Positions :
• 98.5cm (38.8“ in) – minimum extension,
• 134.5cm (53” in)
• 125.5cm (49.4” in),
• 116.5cm (45.8” in),
• 107.5cm (42.3” in),
• 182.5cm (72” in) – full extension.

ACCESSORIES
Extension poles for high ceilings
• 50 cm (20” in)
• 100cm (40” in)



Mounting brackets for pitched or angled roofs angled (please see accessories)

Additional Mounting Plates are available so your Cocoon Aeris can be hung in various locations throughout your home.

MATERIALS & FINISH
Cocoon Shell:
• Carbon Steel with High Heat Resistant Black Finish
• Paint: 70% Matt 30% Satin Finish

Mounting Bracket
• 316 Marine Grade Stainless Steel Mirror Finish

Hanging Pole:
• 316 Marine Grade Stainless Steel Hairline Finish.

Combustion Chamber:
• 304 Marine Grade Stainless Steel Hairline Finish.
