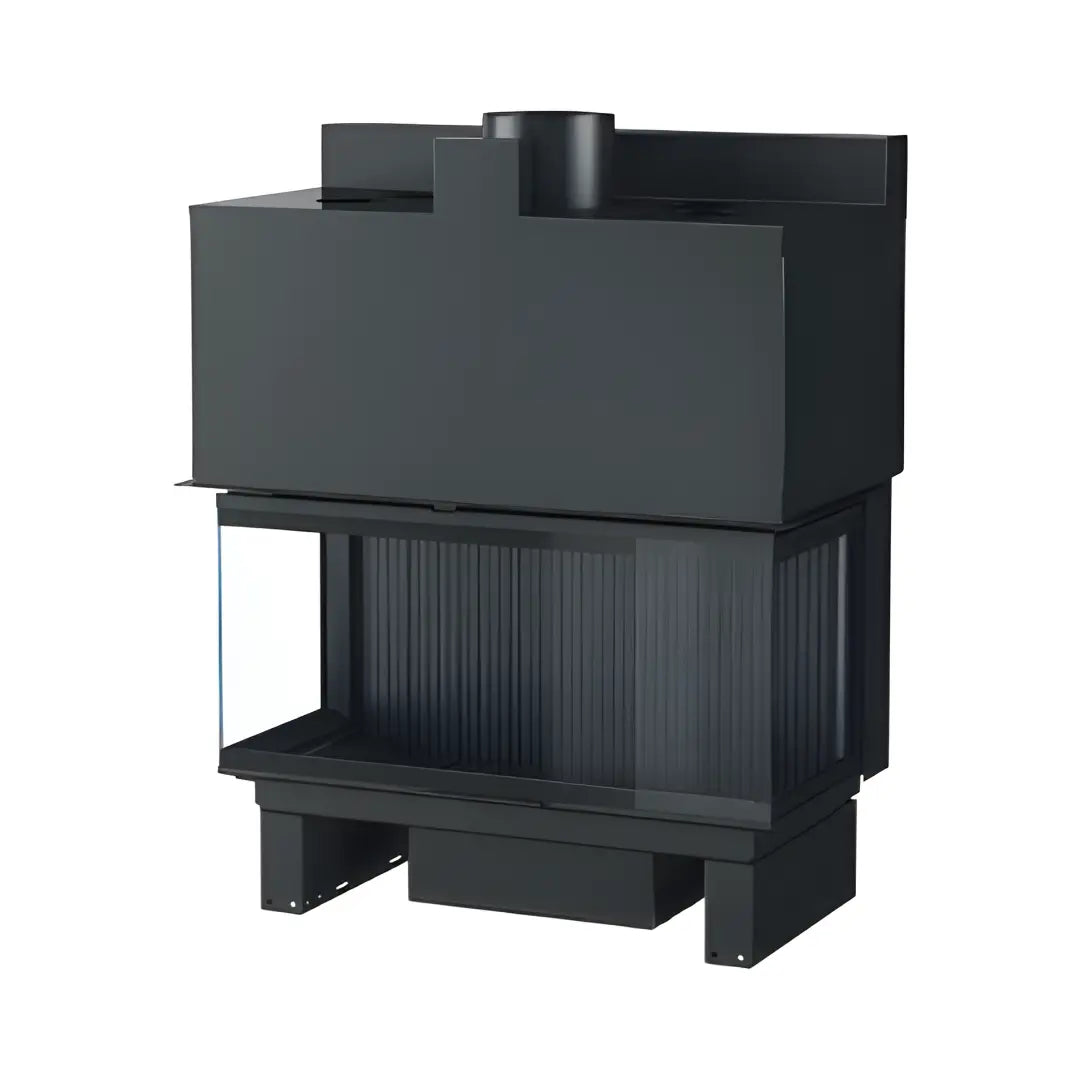

Sculpt Axis FAS120 3V Panoramic (LIFT/SWING)

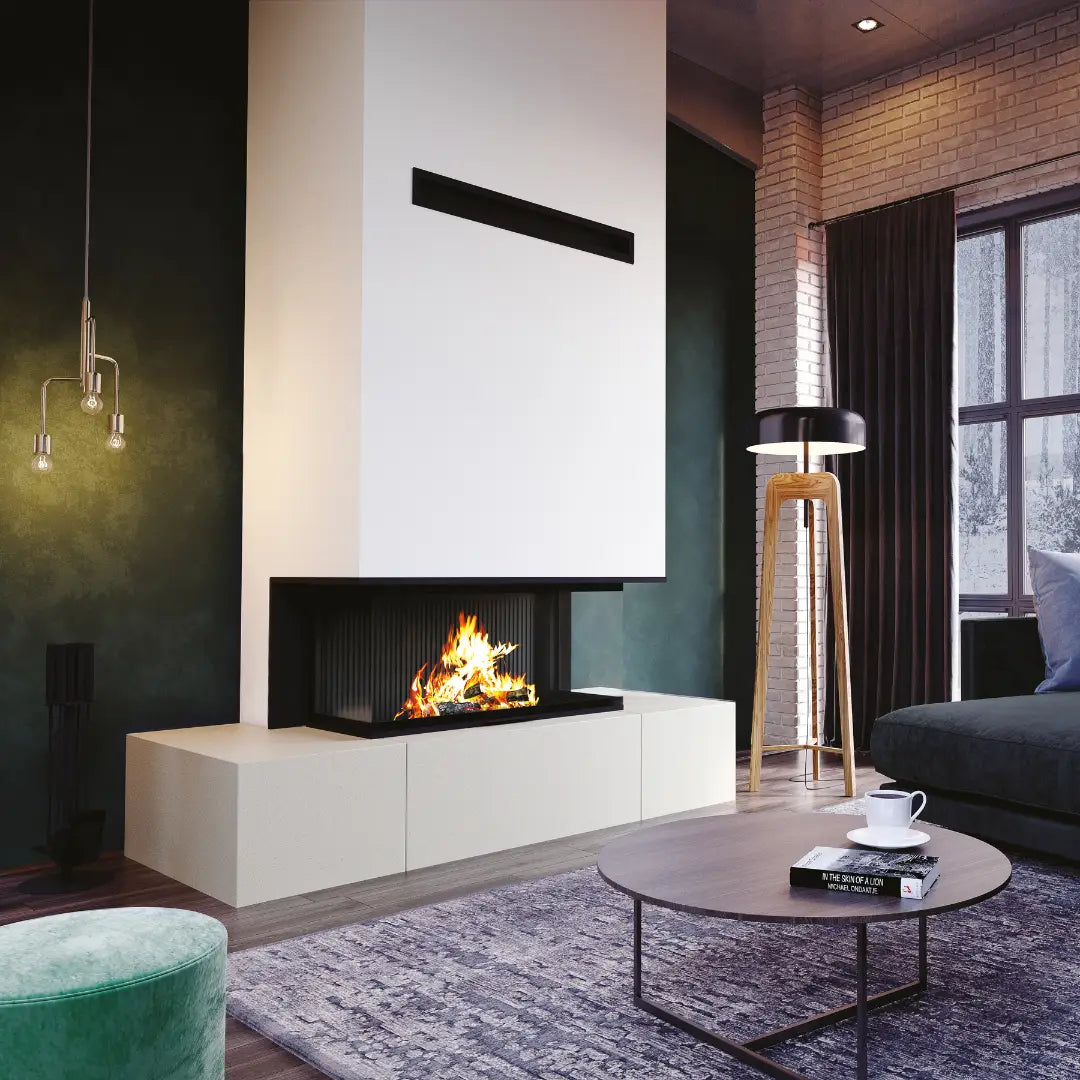

The French-made Axis FAS120 3V is a premium three-sided panoramic wood fireplace designed to maximise flame visibility from multiple angles. Its frameless bay-view design creates an impressive centrepiece for open-plan interiors, while cast-iron internal liners and a high-performance airflow system provide excellent heat retention. The lift-and-swing door offers convenient operation and easy maintenance.

Specifications

• Configuration: Three-sided panoramic glass
• Construction: Steel firebox with grooved cast-iron internal liners
• Glass: Black silk-screen printed ceramic glass
• Heat output: 22.5 kW
• Heating capacity: Up to 250 m²*
• Average efficiency: 62%
• Emissions: 0.8 g/kg
• Door operation: Lift and swing
• Front viewing area: 1016 mm W × 474 mm H
• Side viewing areas: 403 mm W × 474 mm H each
• Façade: Clean, frameless design; optional trims available
• Air system: High-performance airflow system
• Fire grate and ashpan: Included
• Minimum flue height: 5.4 m
• Flue sizes: 230 mm inner, 280 mm and 330 mm outer
• Outside-air kit: Optional; required for homes rated six stars or higher
• Hot-air transfer kit: Optional
• Weight: 290 kg
• Warranty: 10 years on the firebox—conditions apply
• Country of manufacture: France
