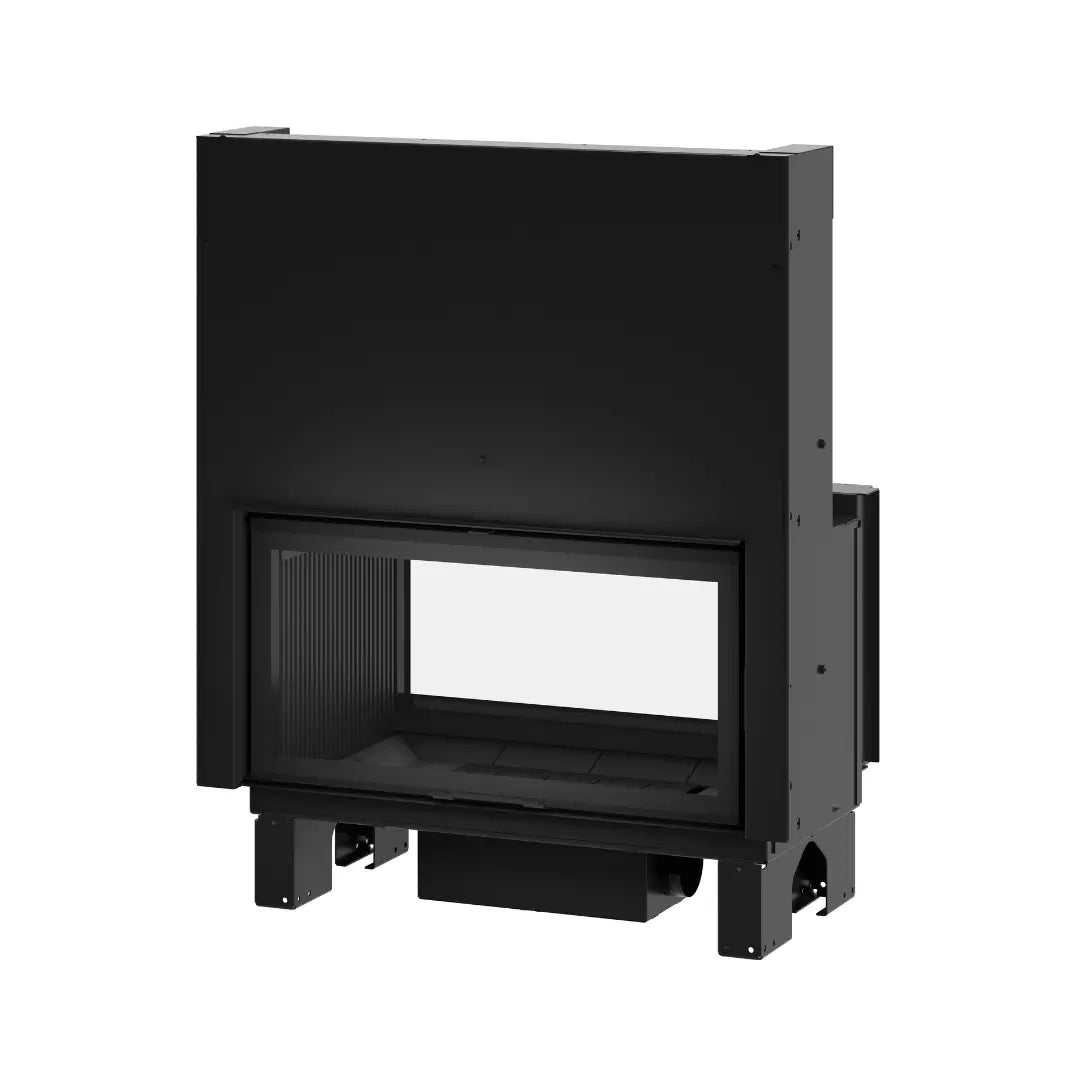

Sculpt Axis FAS120 Panoramic Double Sided (LIFT/SWING)

The French-made Axis FAS120 Panoramic Double-Sided fireplace creates a striking connection between adjoining living spaces, offering an expansive view of the flames from both sides. Its clean frameless design, cast-iron internal liners and powerful 22.5 kW output combine architectural impact with outstanding heating performance. Lift-and-swing doors provide convenient operation and easy maintenance.

Specifications

• Construction: Steel firebox with grooved cast-iron internal liners
• Glass: Double-sided black ceramic glass
• Heat output: 22.5 kW
• Heating capacity: Up to 250 m²*
• Average efficiency: 62%
• Emissions: 0.8 g/kg
• Door operation: Lift and swing
• Glass viewing area: 966 mm W × 474 mm H per side
• Overall firebox width: Approximately 1183 mm
• Façade: Clean, frameless design; optional trims available
• Air system: High-performance airflow system
• Fire grate and ashpan: Included
• Minimum flue height: 5.4 m
• Flue sizes: 230 mm inner, 280 mm and 330 mm outer
• Outside-air kit: Optional; required for homes rated six stars or higher
• Hot-air transfer kit: Not compatible
• Weight: 290 kg
• Warranty: 10 years on the firebox—conditions apply
• Country of manufacture: France
