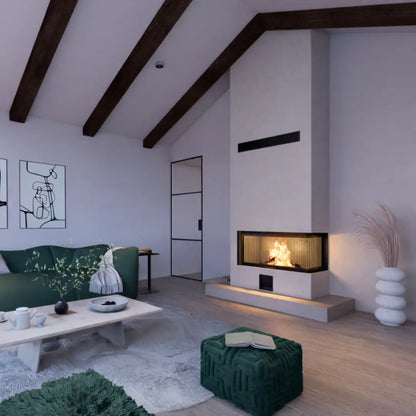

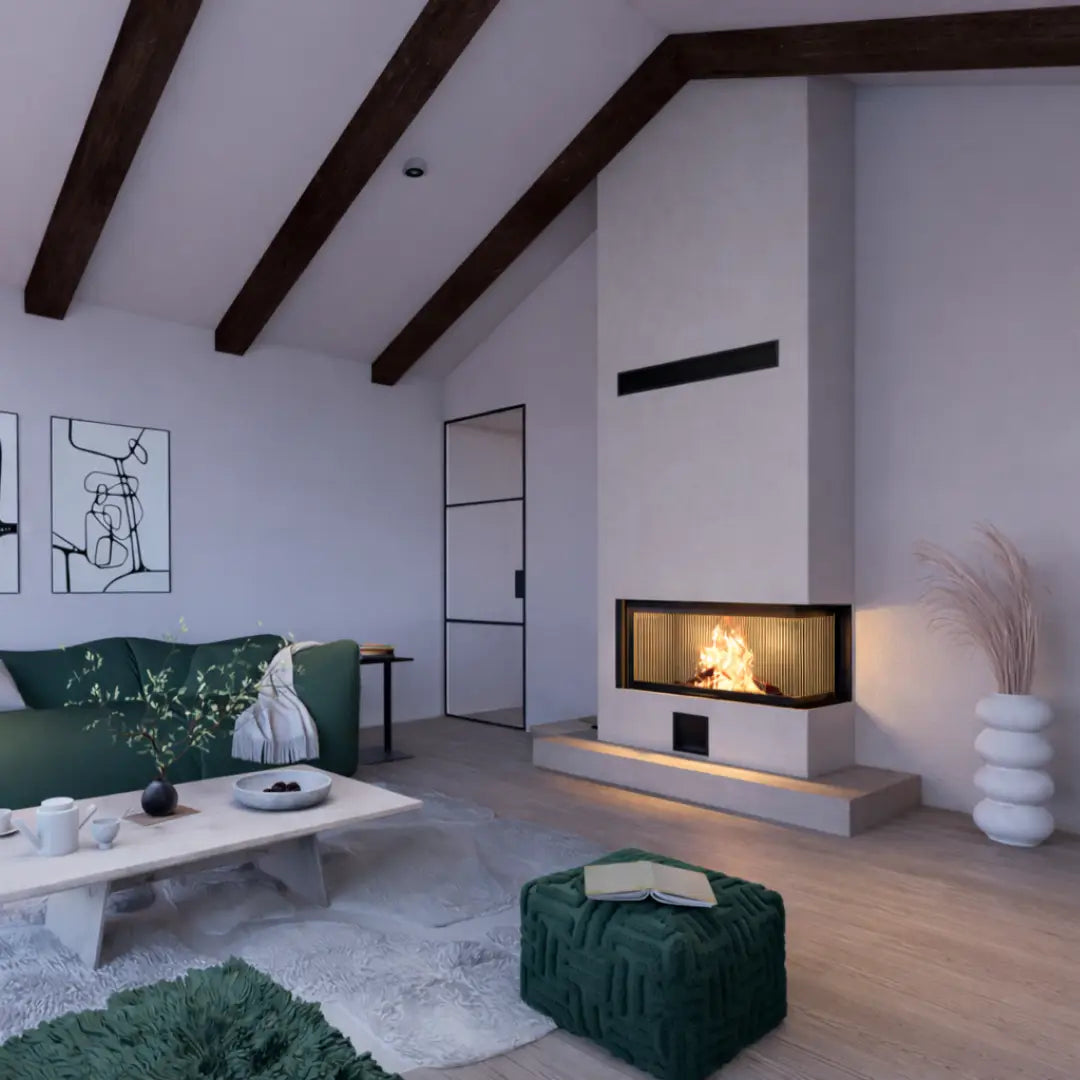

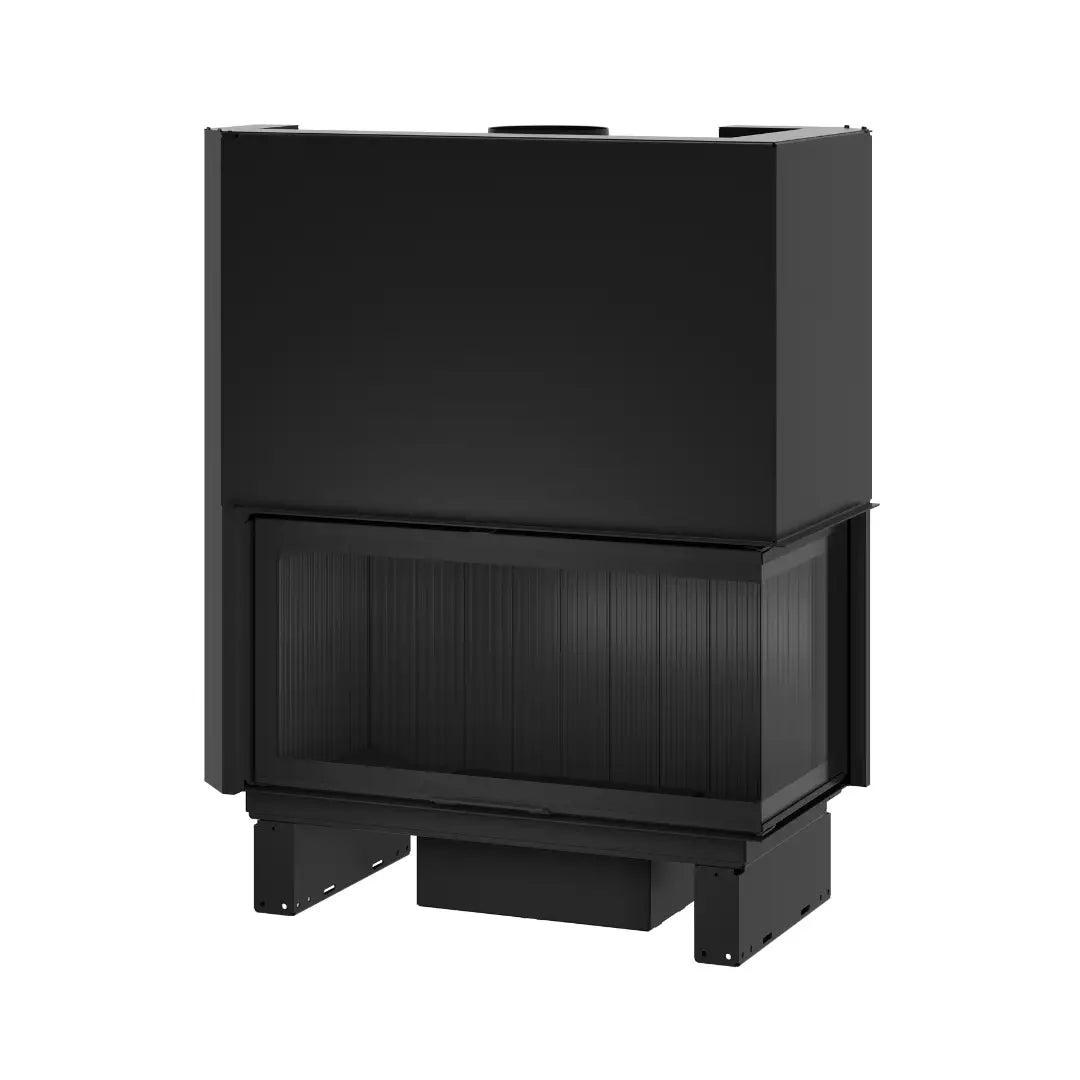

Sculpt Axis FAS120 VLG Panoramic Left (LIFT/SWING)

The French-made Axis FAS120 VLG is a premium corner wood fireplace featuring panoramic front and left-side glass. Its clean frameless design and wide flame view make it an impressive architectural feature, while cast-iron internal liners and a high-performance airflow system provide excellent heat retention. The lift-and-swing door offers convenient operation and easy maintenance.

Specifications

• Configuration: Front and left-side glass
• Construction: Steel firebox with grooved cast-iron internal liners
• Glass: Black silk-screen printed ceramic glass
• Heat output: 22.5 kW
• Door operation: Lift and swing
• Front viewing area: 973 mm W × 474 mm H
• Side viewing area: 441 mm W × 474 mm H
• Façade: Clean, frameless design; optional trims available
• Air system: High-performance airflow system
• Fire grate and ashpan: Included
• Minimum flue height: 5.4 m
• Flue sizes: 230 mm inner, 280 mm and 330 mm outer
• Outside-air kit: Optional; required for homes rated six stars or higher
• Hot-air transfer kit: Optional
• Weight: 290 kg
• Warranty: 10 years on the firebox—conditions apply
• Country of manufacture: France
